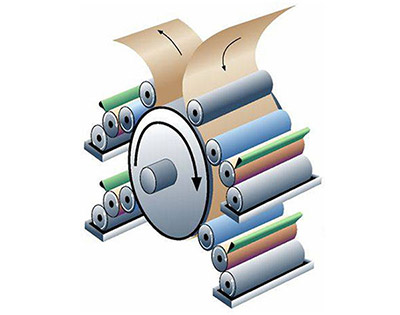

The satellite type printing machine is composed of four color groups around the center, a super large pressure roller structure.
Purpose:


Used for high-precision and high-speed printing of paper, film, OPP, non-woven fabric, plastic woven fabric, paper-plastic composite coil, double-station non-stop winding, automatic servo flying knife cutting cloth, safe and fast.

Equipment performance and features:


●Automatic deviation correction, constant tension control, material cut off, digital display coil diameter and refueling warning.
●No downtime refueling, speed reduction within 100 meters automatic servo cutting cloth double station swing arm exchange.
●The base and thickened wall panels are cast iron materials to ensure the machine runs at high speed and stability.
●The driving force of the printing system is servo synchronous drive, and the low torsion foot accelerates steadily, and the machine stops and does not waste.
●Ceramic anilox rolls, single knife reverse ink scraper, automatic ink supply.
●Closed high speed circulation air knife oven, patented product guarantees drying.
●8 inch winding and expanding shaft for easy matching with square bottom valve pocket production equipment.
●Low noise and high standard safety protection design, beautiful atmosphere equipment, high input, light maintenance, high efficiency.
●High accuracy, fast speed and good efficiency.

Technical parameters:


| Maximum printing width | 650mm |
| Printing length | 600-1200mm |
| Registering precision | ±0.2mm |
| Printing color number | 8 colors (4 front and 4 back) |
| Winding and unwinding diameter | ≤1400mm |
| Printing speed | 120-160m/min |
| Main motor power | 7.5kw |
| Outline dimensions | 17000×2900×3900mm |


Configuration list:


| Servo motor | Delta |
| PLC | Delta |
| Touch screen | Weinview |
| Low voltage electric appliance | Schneider |
| Switching power supply | Mean Well |
| Bearing | Zhejiang Renben |
| Wallboard material | Cast iron |

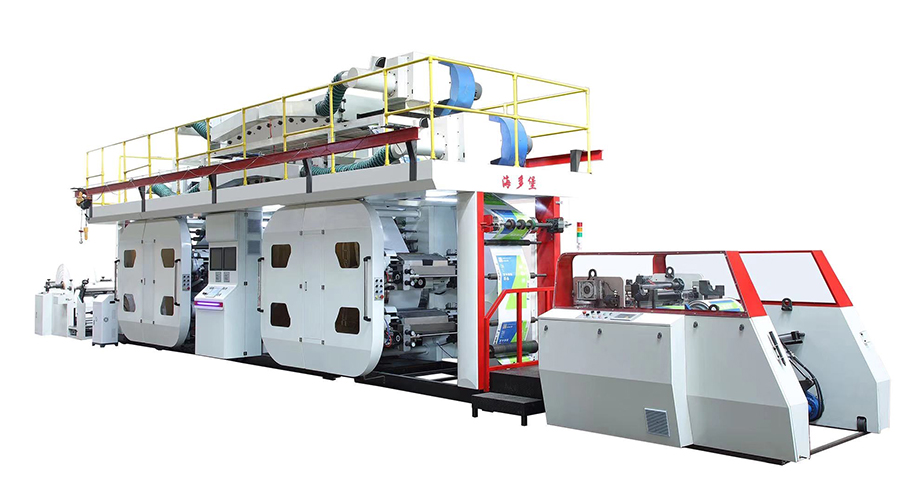

Operating state appreciation
